COB LED RGB Strip Light 810led/m DC12V Mini 0402 LED IP20/IP65 Rated Brightness & Spotless Strip Light
Description
COB 810LEDS light strip is composed of very high density LED chips. Using mini 0402 LED chip, it has high brightness and long life. The entire light strip has very balanced light with no bright spots or dark areas. Color dimmable, multiple flashing and music light modes available. Available in red, blue, green and Mix white, you can choose your favorite color. It can also be adjusted to different colors in different areas.
Features
Using mini 0402 LED as light source, and glue on surface to make the lights more evenly anduniform.
Up to 810 LEDs each meter, only 3.7mm distance between same color LEDs.
Double layer FPC, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the RGB controllers in the markets.

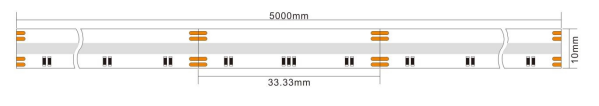

Dimensions
Technical parameters
Brightness Consistency
The following charts shows the voltage, lumen and brightness drop on each meter
From above charts, for better brightness consistency, the recommend length is 5mforpowering on one side.
Installation Ways
The recommend running length is 5 meters, for over 5 meters please connect inparallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Package
Applications
--Used in linear lights as lighting source; used for indoor decorations
|
|
